 LC系列冷却器 |

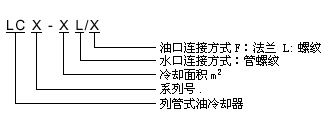

| 一、型号说明 |
 |
| 二、LC 型冷却器规格型号及性能参数表 |
参数/系列型号 |
冷却面积 | 工作压力 |
工作温度 | 压力降 MPa |
介质粘度 |
油水 |
换热系数 | |
油侧 | 水侧 | |||||||
LC1 | 0.4~3.5 | <=1.6 | <=100 | <=0.1 | <=0.05 | 20~300 | 1:1 | >=320 |
LC2 | 6~10 | |||||||
LC | 1.0~5 | |||||||
| 三、 LC 型冷却器尺寸示意图 |
 |
| 四、LC 型冷却器尺寸表 |
型号 | A | B | C | D | M | F | G |
LC1-0.4L/L | 396 | 240 | 40 | 88.5 | 152 | G1" | G0.75" |
LC1-0.6L/L | 561 | 405 | 40 | 88.5 | 152 | G1" | G0.75" |
LC1-0.8L/L | 688 | 532 | 40 | 88.5 | 152 | G1" | G0.75" |
LC1-1.0L/L | 821 | 665 | 40 | 88.5 | 152 | G1" | G0.75" |
LC1-1.2L/L | 961 | 805 | 40 | 88.5 | 152 | G1" | G0.75" |
LC1-1.3L/L | 561 | 374 | 80 | 133 | 218 | G1" | G1" |
LC1-1.7L/L | 687 | 500 | 80 | 133 | 218 | G1" | G1" |
LC1-2.1L/L | 821 | 634 | 80 | 133 | 218 | G1" | G1" |
LC1-2.6L/L | 963 | 776 | 80 | 133 | 218 | G1" | G1" |
LC1-3.0L/L | 1113 | 926 | 80 | 133 | 218 | G1" | G1" |
LC1-3.5L/L | 1271 | 1084 | 80 | 133 | 218 | G1" | G1" |
LC-1.0L/L | 367 | 160 | 80 | 133 | 218 | G1" | G1" |
LC-1.6L/L | 547 | 340 | 80 | 133 | 218 | G1" | G1" |
LC-2.5L/L | 747 | 540 | 80 | 133 | 218 | G1" | G1" |
LC-3.2L/L | 917 | 710 | 80 | 133 | 218 | G1" | G1" |
LC-4.0L/L | 1117 | 910 | 80 | 133 | 218 | G1" | G1" |
LC-5.0L/L | 1271 | 1064 | 80 | 133 | 218 | G1" | G1" |
LC-6.0L/L | 1090 | 870 | 128 | 219 | 309 | G2" | G1.5" |
LC-7.2L/L | 1260 | 1040 | 128 | 219 | 309 | G2" | G1.5" |
LC-8.5L/L | 1302 | 1280 | 128 | 219 | 309 | G2" | G1.5" |
LC-10L/L | 1750 | 1530 | 128 | 219 | 309 | G2" | G1.5" |
